Axis

Axis Spitfire Carbon Front Wing

Regular price
£635.00
Regular price
Sale price
£635.00
Tax included.
Size

Imagine a dedicated surf foiling wing that lets you foil waves like a surfer would. If you’re anything like us, you’ve been dreaming of an effortless turning wing, that inspires confidence when dropping in, that has a gentle, predictable easy lift up onto foil. A foil that not only handles breaches but even encourages them! No wave is the same, sometimes you need a turn of speed, and on another, you need to slow right down but stay on foil. A wing you can just forget about and get on with the business of enjoying yourself. Of course, that wing has to be capable of pumping you back out to do it all again and again. The wait is over, meet the AXIS Spitfire.

You’ll recognise it by its distinctive elliptical outline, straight median line and lack of aggressive turndown through the tips. Moderate chord lengths, that taper smoothly from the centre to the tips, encourage smooth, predictable but precise turning. Reduced foil thickness for enhanced top end to compliment the greater chords providing easy low end.

Many of these attributes are shared by the ARTPRO Range of wings, and in fact much of what Axis learned in the development of that lineup fed into the design for the Spitfire wing.

Through the development process, Axis put the Spitfire through its paces. The smaller sizes are fast with explosive turning. The larger sizes are great for areas with smaller riding zones and larger riders. The Spitfire wing is a very versatile front wing, able to ride waves or flat water across ProneFoil, SUPFoil, WingFoil, WakeFoil, downwind, lake pumping and KiteFoiling disciplines. They do it all.
Spitfire foils are ideally matched with an Axis Black Advance fuselage and either the Axis Progressive or Skinny rear Stabilisers.

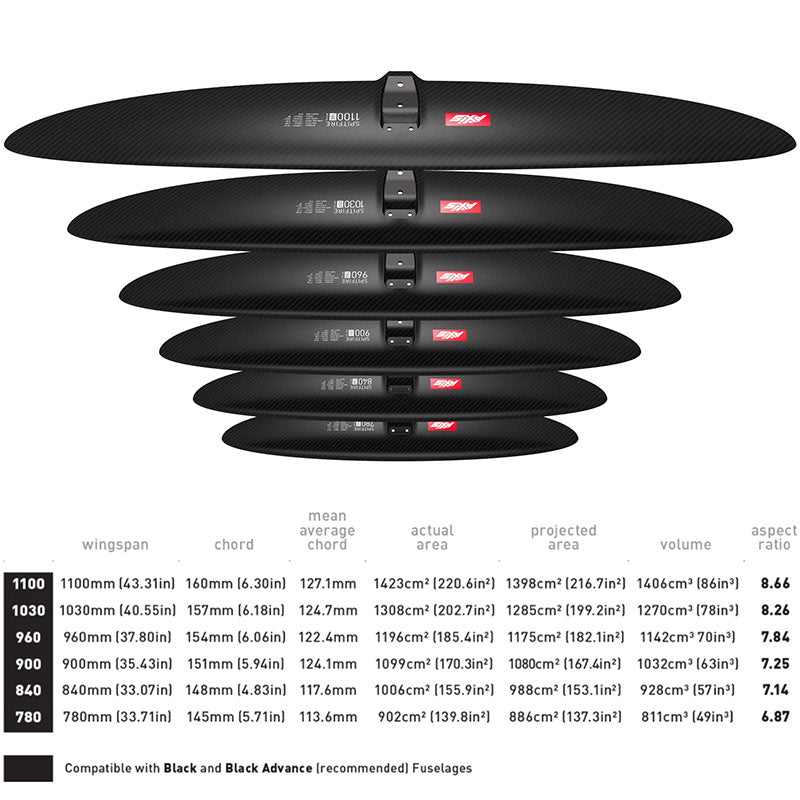

SIZE GUIDE

Size WingSpan Chord Mean Avg Chord Actual Area Projected Area Volume Aspect Ratio
780 780mm 145mm 113.6mm 902cm² 886cm² 811cm³ 6.87
840 840mm 148mm 117.6mm 1006cm² 988cm² 928cm³ 7.14
900 900mm 151mm 124.1mm 1099cm² 1080cm² 1032cm³ 7.25
960 960mm 154mm 122.4mm 1196cm² 1175cm² 1142cm³ 7.84
1030 1030mm 157mm 124.7mm 1308cm² 1285cm² 1270cm³ 8.26
1100 1100mm 160mm 127.1mm 1423cm² 1398cm² 1406cm³ 8.66
