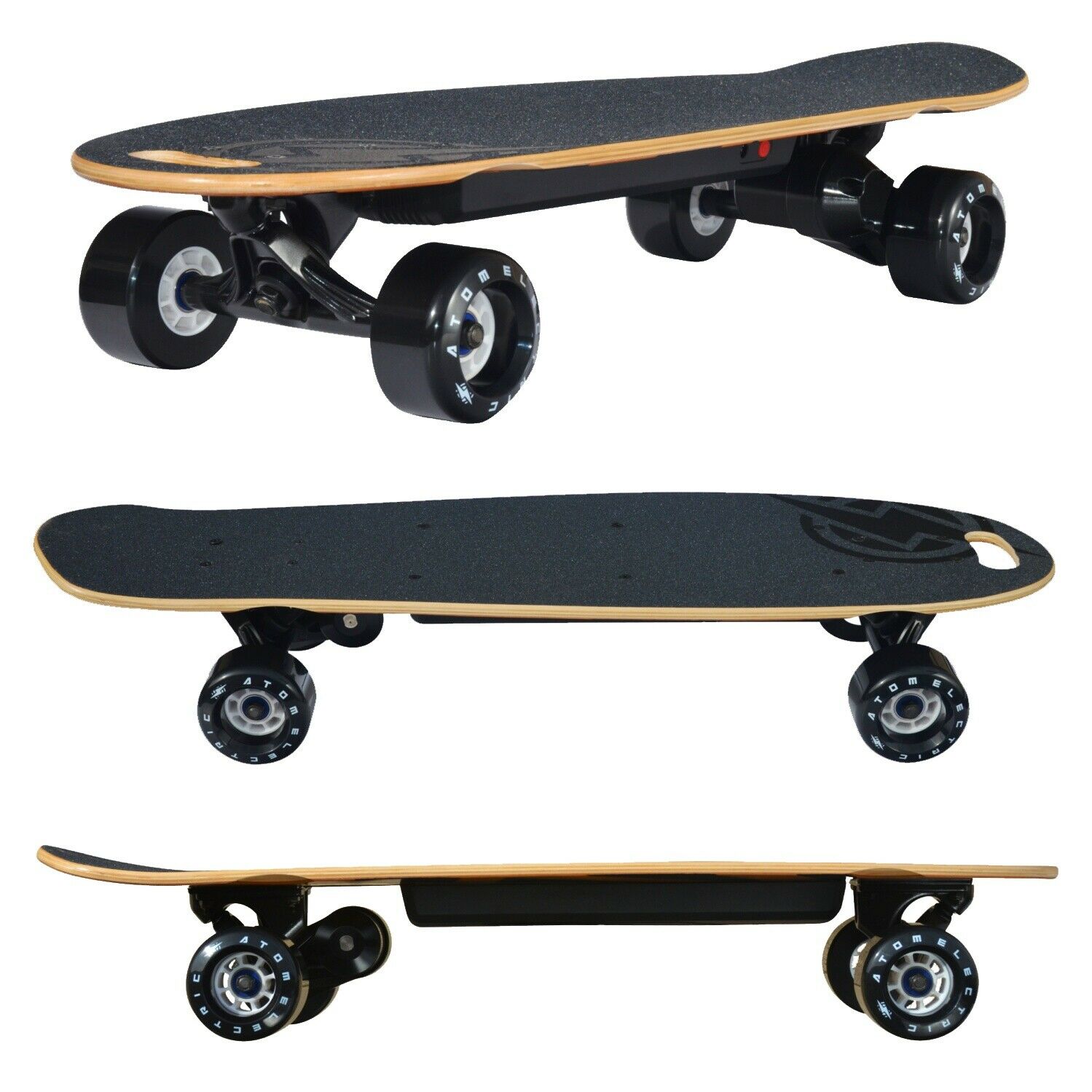

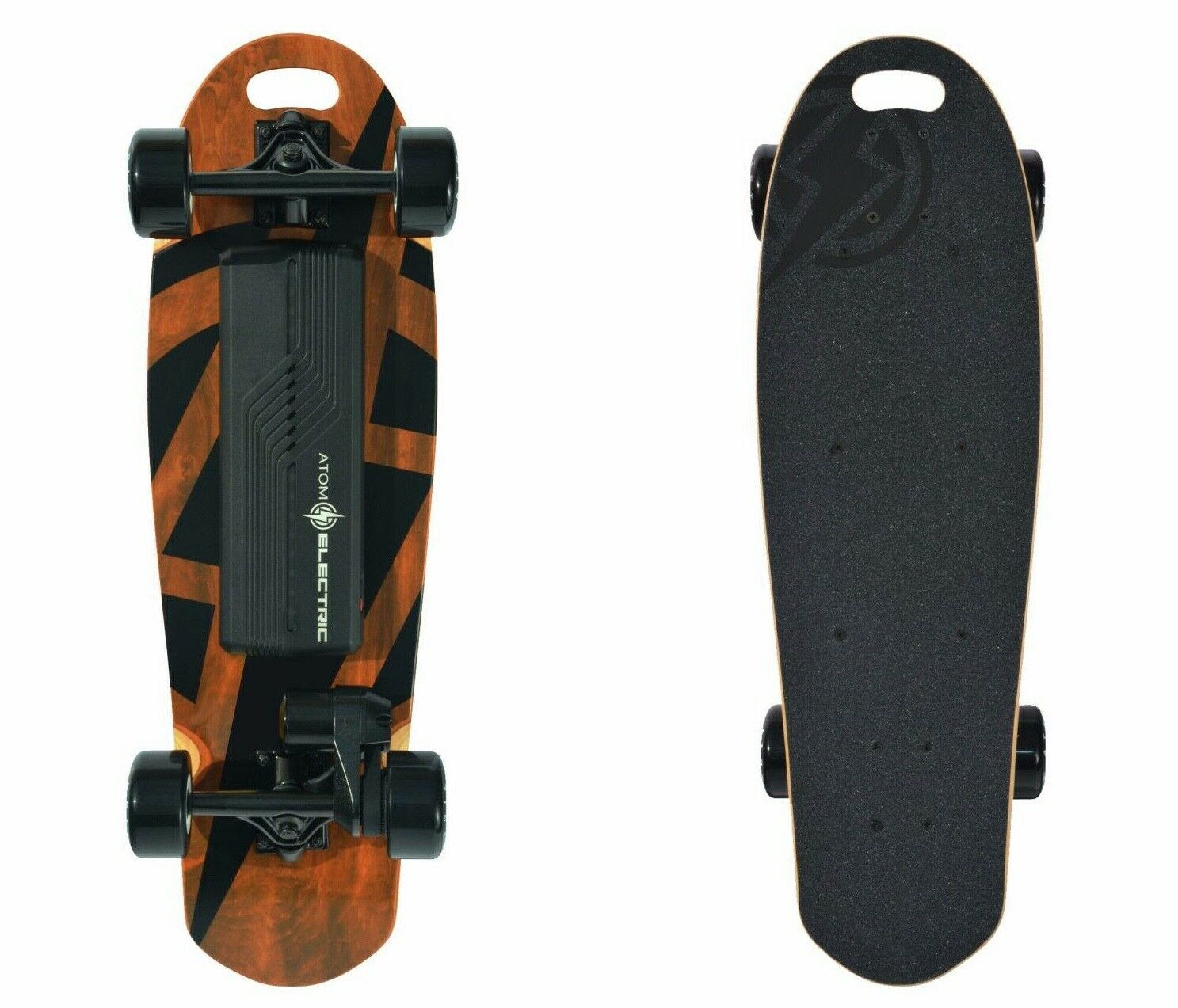

Atom B10 Electric Skateboard

Atom B10 combines the best qualities of other electric Skateboards into a single power-packed package selling at a fraction of the price. With its compact size, light weight, low center of Gravity, versatile kick-tail and convenient carry handle built into the tip of the deck (where you naturally grab a skateboard) the B10 is the obvious choice for commuters, but don't mistake this board for just another flat-land CBD cruiser. The B10'S grunt 1000W brushless dc motor, fed by high performance Samsung 25R lithium-ion batteries and our custom foc sine-wave speed controller, boasts enough torque to boost average riders up hills in excess of 10% grade. With the Atom Electric B10 great things really do come in small packages.

POWERFUL 1000W MOTOR*

REGENERATIVE BRAKING - What’s better than a longboard with a brake? One that charges your battery in the process. Go the extra mile with Atom Electric.

SAFE, STRONG, AND RELIABLE BATTERIES - Atom Electric uses the best lithium cells available (Samsung, LG, and Panasonic) and tests 100% of batteries using peak charge and discharge rates before putting them in a board. There is no way to stop off-brand companies from using cheap and dangerous lithium batteries in their constant push to offer the cheapest price online, but luckily customers are starting to understand you get what you pay for, especially when it comes to safety. Good batteries are expensive, but your safety is worth it.

BATTERY LEVEL INDICATOR - Don't get caught in black out. Check the boards built-in battery indicator to know when it's time to turn back.

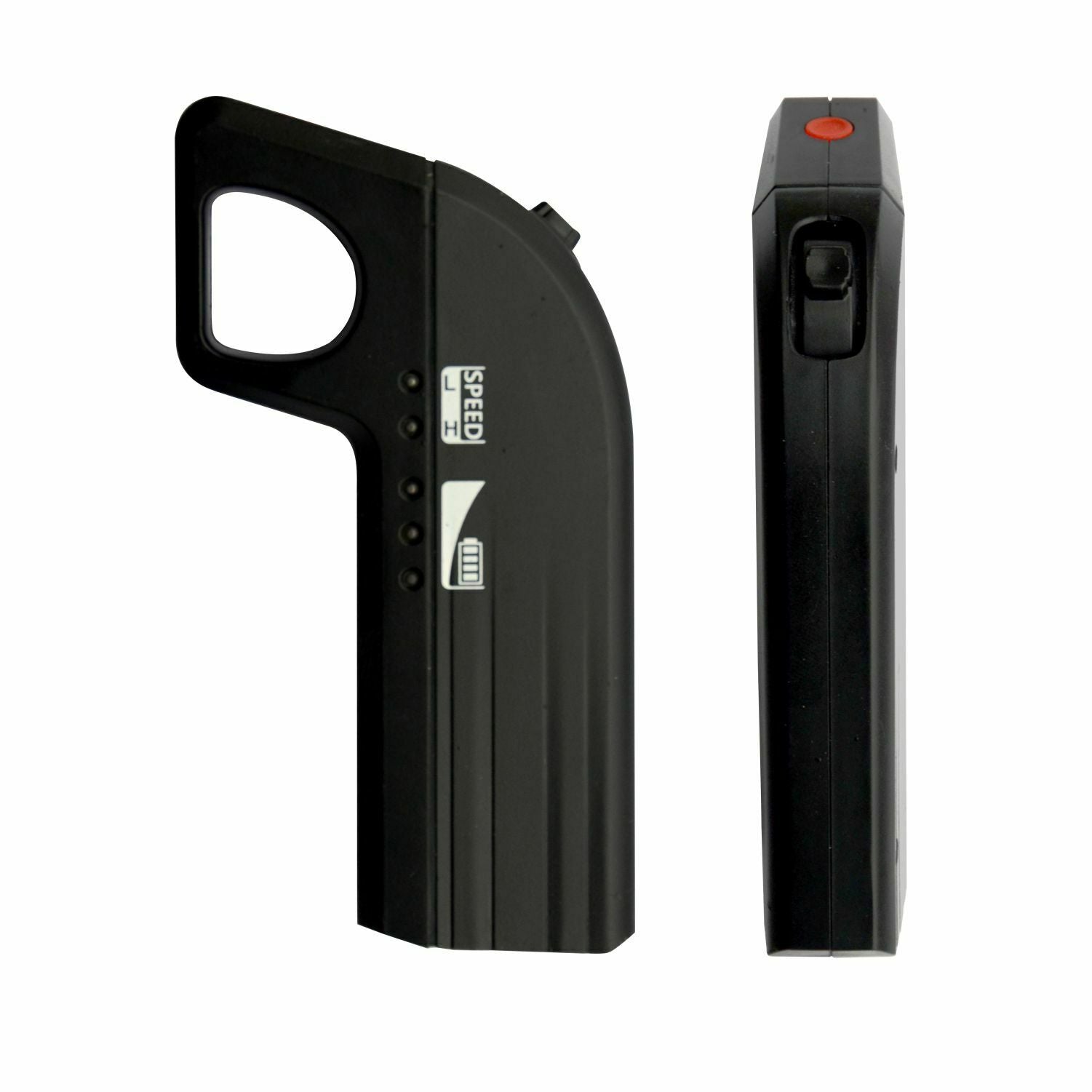

ERGONOMIC REMOTE CONTROL - Secure 2.4GHz wireless technology housed in a lightweight comfortable remote makes controlling your board feel completely natural.

TWO SPEED MODES - Slow mode tames the beast for first timers and granny drivers. Fast mode unleashes it!

SUPERIOR SOFTWARE - Atom Electric's B-series boards offer the smoothest acceleration and braking available thanks to the advanced FOC (Field Oriented Control) software. The majority of electric skateboards on the market still use BLDC square-wave technology which can never match the silky smooth performance of FOC sine-wave technology - the Cadillac of Electronic Speed Controllers (ESCs).

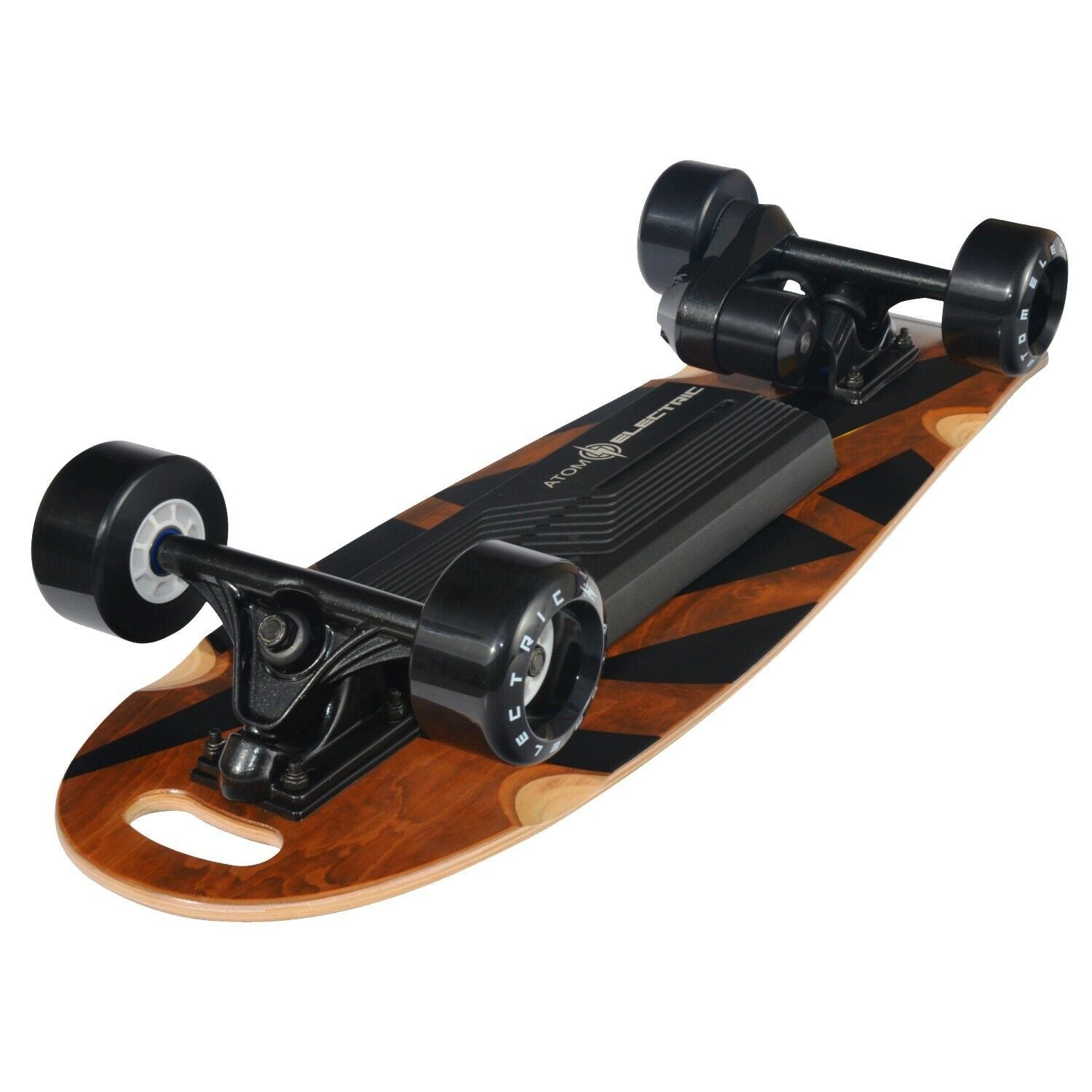

BUILT TO LAST - With its electronics encased in a compact die-cast aluminum battery box the B-series keeps critical components cool and safe.

LOW CENTER OF GRAVITY - Feel more down to earth as you float along just above it.

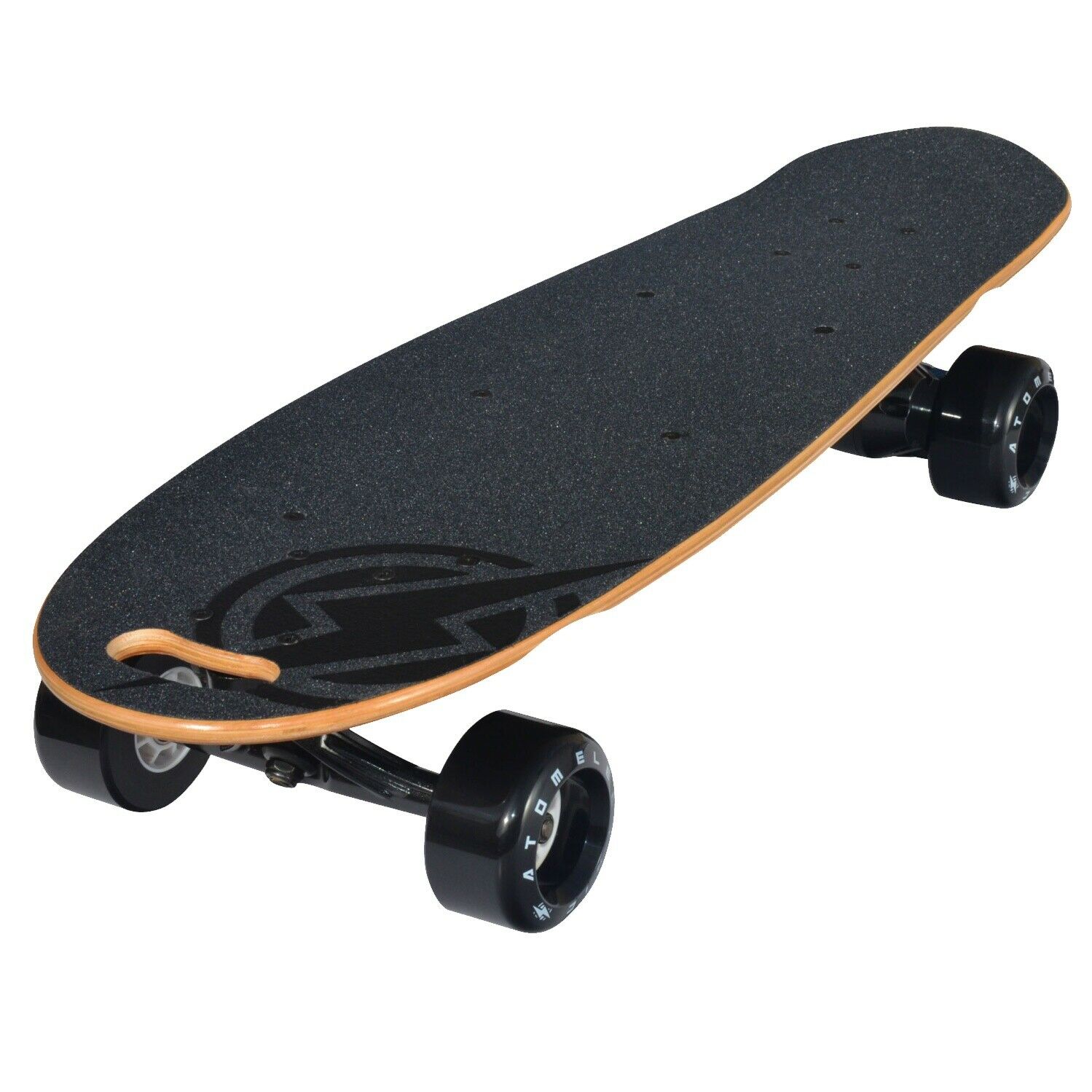

CARRY HANDLE - When it's time to jump on a train or ride the elevator to work just grab the handle and be on your way.

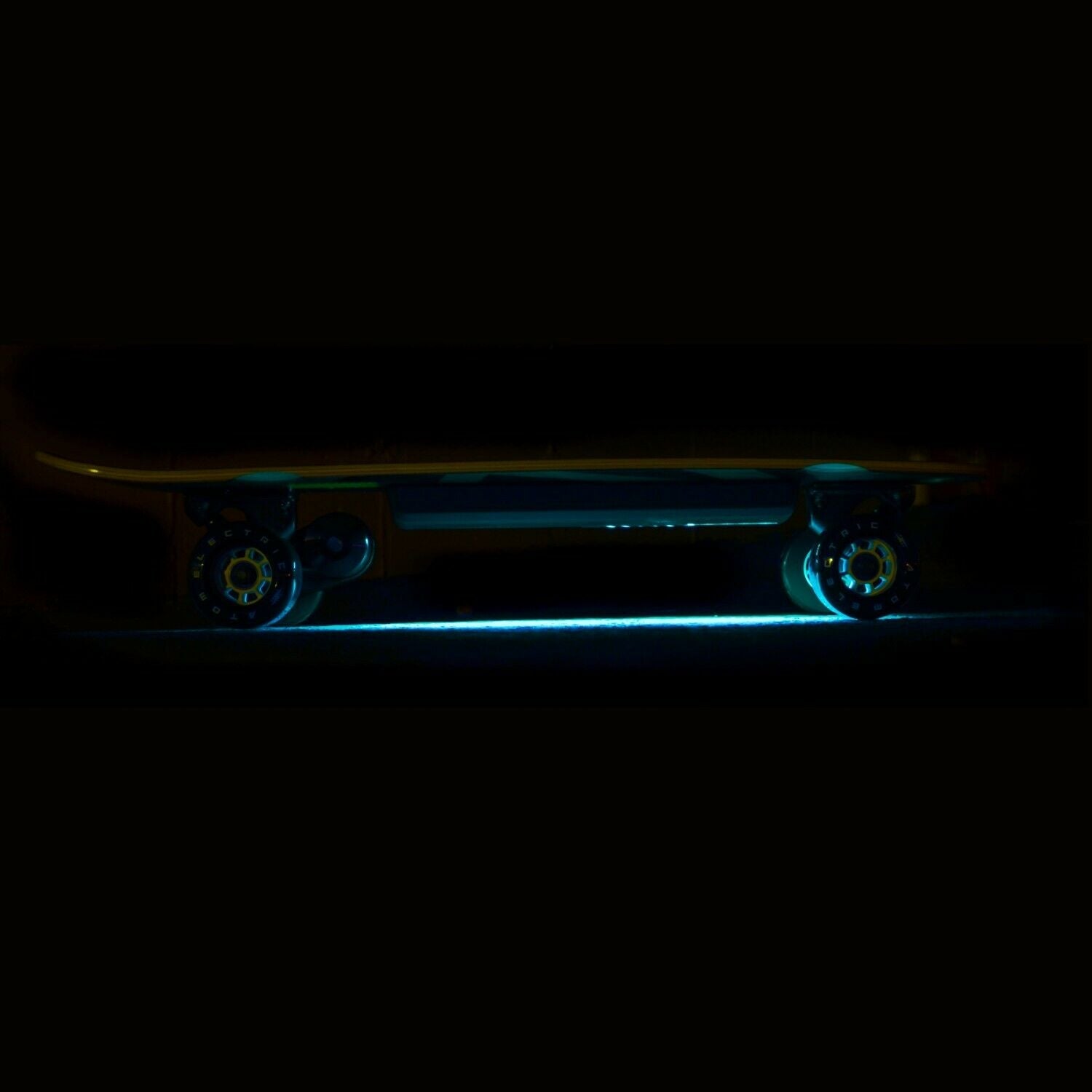

LIGHTS - Battery box features changing light color schemes.

Comes Fully Assembled

PT: 40406

INCLUDES:

• Fully Assembled Board
• Battery Charger
• Remote Control (Including USB charger cord)
• Skate Tool

SPECIFICATIONS:

• Range*: 7 miles / 11 km
• Max Speed**: 16 mph / 25 kmh
• Max Grade***: 12%
• Max Rider Weight: 275 lb / 125 kg
• Max Recommended Rider Weight: 200 lb / 91 kg
• Board Weight: 11 lb / 5 kg
• Battery Charge Time: 2 hours
• Deck Material: Maple
• Deck Length: 29.5 in / 75 cm
• Deck Width: 9.1 in / 23 cm
• Motor Type: Brushless Direct Current (BLDC)
• Motor Max Power Rating: 1000W
• Motor Braking: Regenerative Braking
• Motor Sensors: Sensorless
• Belt Spec: 225-3M-13mm
• Cell Type: Lithium-Ion (18650)
• Cell Spec: Samsung 25R
• Cell Voltage (Nominal): 3.6 V
• Cell Current Capacity (Ah): 2.5 Ah
• Cell Energy Capacity (Wh): 9.0 Wh
• Battery Configuration: 10S X 1P (10 cells)
• Battery Voltage (Nominal): 36V
• Battery Current Capacity (Ah): 2.5Ah
• Battery Energy Capacity (Wh): 90 Wh
• Charger / Battery Voltage (Max): 42 V
• Battery Charger Output (Amps): 1A
• Wheel Material: Super High Rebound PU
• Wheel Dimensions: 80mm X 45mm
• Wheel Hardness: 78A
• Remote Battery Type: Rechargeable Li-Ion
• ESC Software: Sine Wave (FOC)

*Range is based on a 155lb (70kg) person riding conservatively (slow/eco mode) on relatively smooth and flat terrain with minimal wind. Actual mileage varies depending on rider weight, riding surface, hills, wind, and most importantly riding habits. To achieve maximum mileage kick to start, accelerate slowly, coast when possible, brake lightly, and ride below max speed. Going slower means going further. Use slow / eco mode to achieve longest possible range.** Max grade calculated based on 155 lb (70kg) rider riding on smooth surface with mild breeze at full charge. Actual max grade depends on rider weight, riding surface, and battery level.

** Max speed is calculated when riding on smooth flat ground with no wind with board at full charge. Max speed will decreases as your battery level decreases. This is true for all electric boards.

*** Max grade calculated based on 155 lb (70kg) rider riding on smooth surface with mild breeze at full charge. Actual max grade depends on rider weight, riding surface, and battery level.
